Teknisk / venue info

Sound

NB – there is a limit on max 102 dB in Sort & Blå Scene.

Last ned vår husoversikt på norsk: Specs_RiP_ed7_170225

Download our venueinfo/rider in English: Specs_RiP_ed7_170225_english

PA
2 (4) x tops Coda Audio APS
2 x sub Coda Audio U4
1 x Coda Audio Linus 12-C

FOH
Allen Heath D-Live C1500
Allen Heath CDM32
Allen Heath DX168
Allen Heath IP8

Monitor system
6 x Coda Audio Cue Four (double 8″+ 1,4″) coverage 55°+ 40°
2 x Coda Audio Linus 10-C

No separate monitormixer on stage.

Mic
5 x Shure SM57
5 x Shure SM58 beta
3 x Shure SM58
1 x Shure Beta-91
1 x Shure SM52 beta
2 x Shure KSM137 condensator mic

5 x Sennheiser E604
1 x Sennheiser E602
1 x Sennheiser MD421
2 x Sennheiser E906
1 x Sennheiser E614

DI
1 x Palmer PDI-09
1 x Radial JDX 48
2 x Radial ProD2
2 x Radial Pro48
2 x Countryman Type 85 fet

Stands/cables
7 x small mic stand
6 x big stands, gallow
2 x big stands, round foot
2 x cab clamps
1 x keyboard stand

XLR and other necessary cables

Backline

Drums
TAMA Starclassic
22" kick
16" floor
12" tam
10" tam
2 x snare
1 x high hat stand
5 x cymbal stand

Drummer should bring own snare, pedal and cymbals.

Bass

Ampeg SVT-450

Ampeg 8×10″ cab

Guitar

Marshall JCM 800 head

Marshall 1960 cab (4×12)

Marshall 1960A cab (4×12)

Marshall JCM 900 combo (1×12)

Peavey Classic 30 combo + extension cab (2×12)

Fender 68 Custom Deluxe Reverb (1×12)

Peavey Classic 50

VOX AC30C2 Combo (2×12)

Inhouse backline can be used by artist free of charge, but bring your own snare, cymbals and pedals.

Lights

FOH
GrandMA 3 Commandwing
22'' touchscreen
2 x DMX to stage
1 x DMX Splitter

Stage
7 x Dimmer CLS DMX4002 4x1000W (total 24 channels)
1 x Chauvet Amhazer Whisper (hazer)

4 x Chauvet Rouge R2 moving head wash – backwall
12 x PAR-56 300W – backwall (8 pcs in back-up)
4 (6) x XBAR RGBWAU – backwall (2 pcs available for floor)
2 x strobes – backwall (1 pcs in back-up)

2 x Chauvet COLORado 2 Solo – sidewall
2 x led par can – sidewall

2 x Fresnells Led 50W – frontlights
2 x X-baby 50W – frontlights

2 x 2-lights blinders – front of stage towards FOH
1 x PAR-56 / 300W – FOH towards stage

4 x XLED RGBWAU – available for floor
4 x PAR-56 300W – available for floor

Lights are mounted as described.

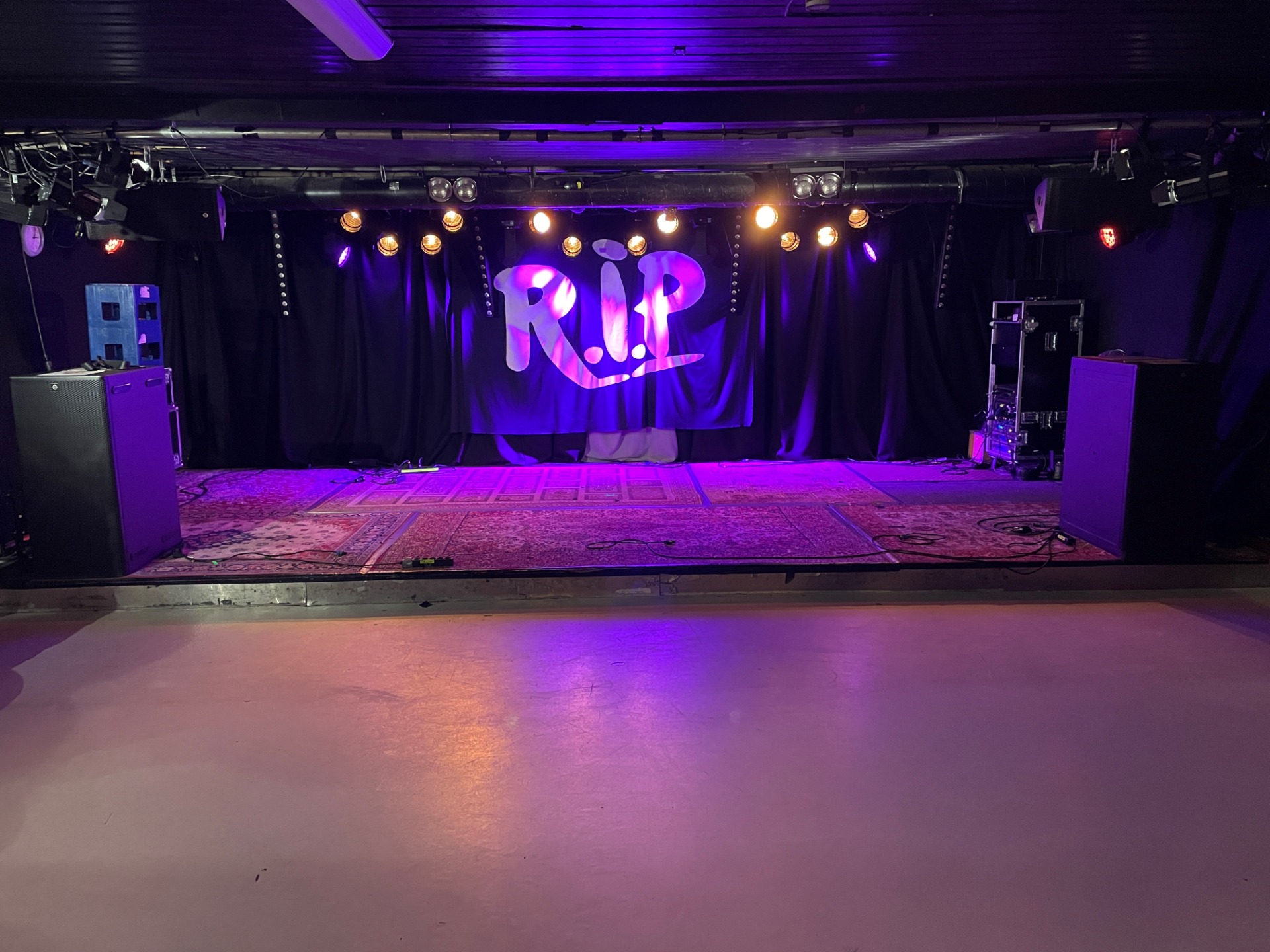

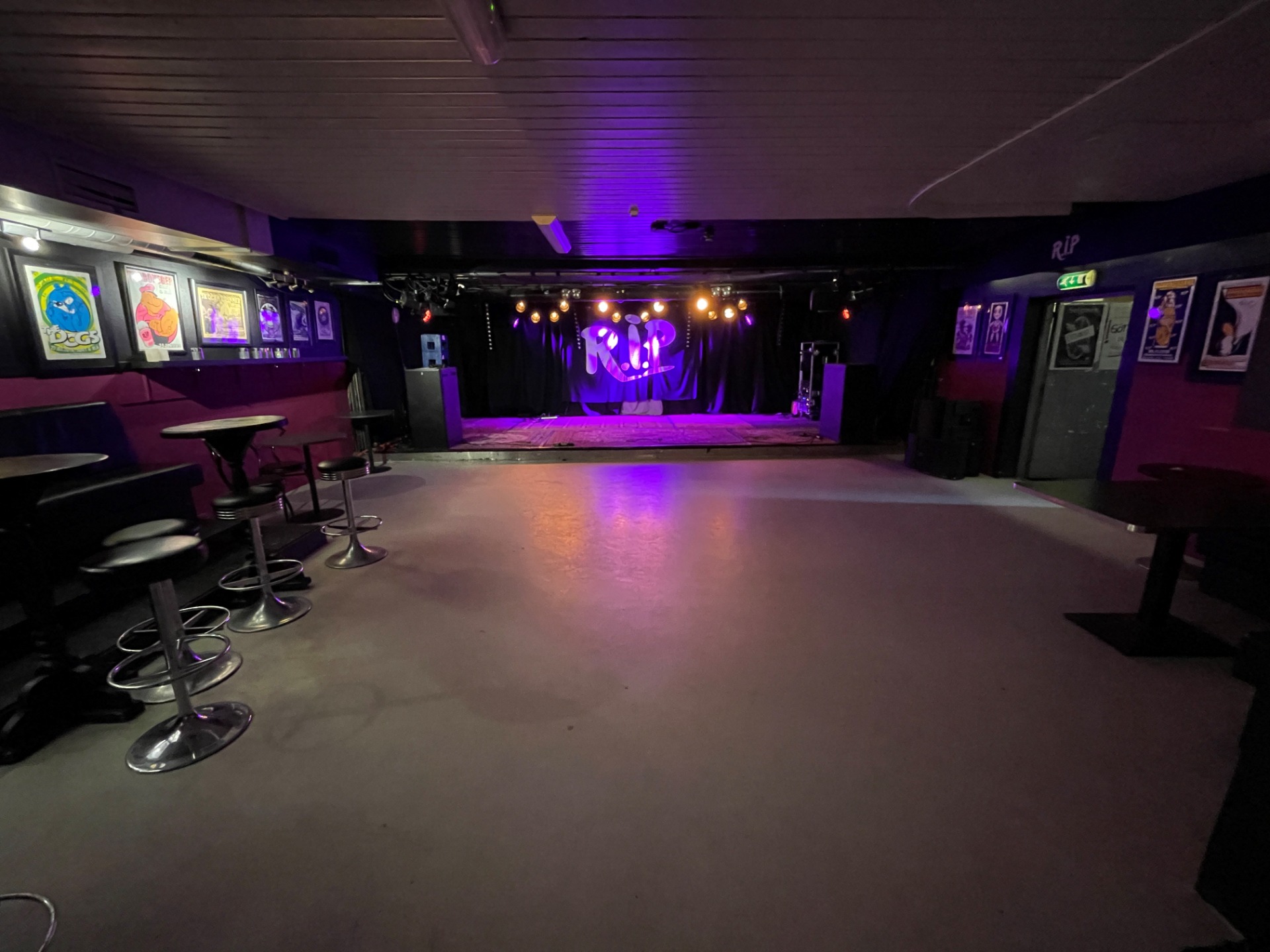

Venue

Capacity: 160 PAX standing / 100 PAX seated
Stagesize: (WxDxH) 8 x 3,5 x 0,30 m
Clearing: 2,30 m

No sidestage. If artist bring own monitormixer/monitortech and/or backlinetech, they must find room on a small stage.

Venue has barricades.

NO PYRO!

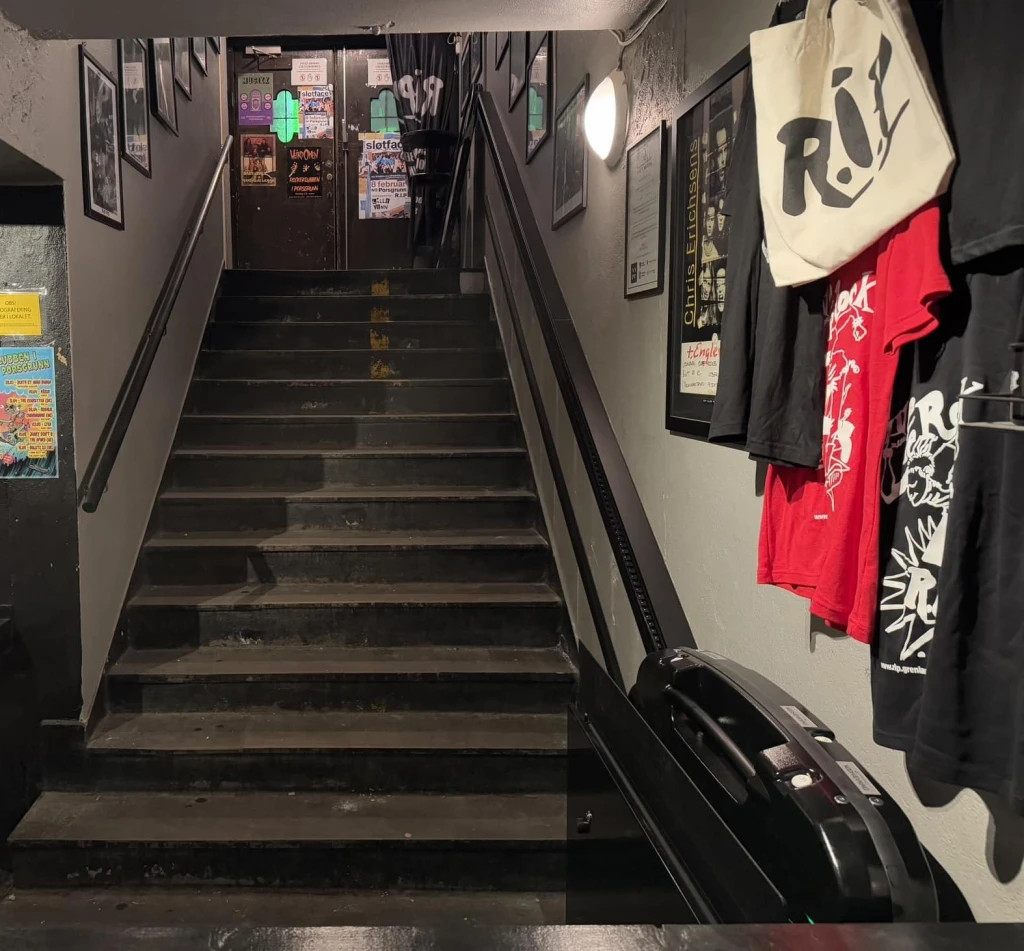

Load-in/out through main entrance, down one flight of stairs, direct onto stage. Wheelchair-lift kan be used for heavy equipment.

Parking outside venue, in street or in front of hotel. If artist/crew comes in nightliner and need powersupply, parking must be planned.

We have a dedicated space for merch-sales, with table, wallmount and lights. We do not provide salescrew, artist must organize sales. RiP does NOT take a cut of the merch-sales, 100% goes to artist.

Questions about technical issues and/or backline – contact technical manager Øystein Islann, mobile +47 40435349, mail oystein@obiter.no.
